HUUM UKU Local Control

Simple & Reliable Sauna Control

The UKU Local Sauna Control makes managing your sauna effortless, bringing convenience and comfort to every session. Designed with user-friendly operation, it allows you to easily adjust your sauna’s settings for the perfect heat every time.

Enhanced Safety & Features

Built with several integrated safety functions and extra features, the UKU Local ensures a worry-free sauna experience. Its reliable design provides peace of mind while enhancing the overall enjoyment of your sauna.

Designed for Larger Sauna Heaters

The UKU Local is compatible with HUUM sauna heaters over 11kW and up to 18kW when paired with a required UKU Extension Box (sold separately).

Included

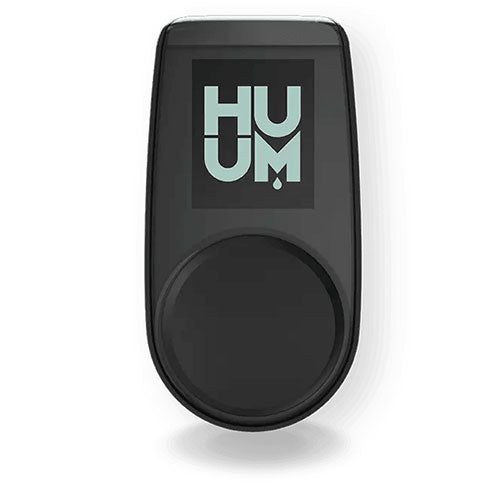

• Black Control Display Panel, 4.13" x 2.17" x 0.87"

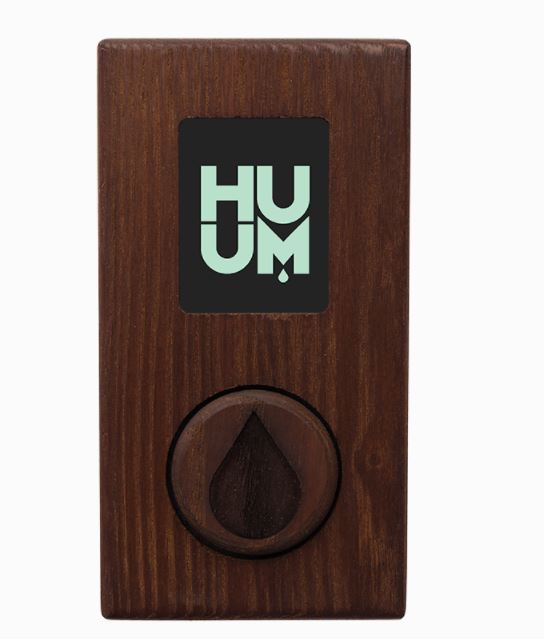

• Wood Control Display Panel, 4.25" x 2.25" x 1"
• Main Control Module, 5.59" x 3.54" x 2.28"
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable, 9.84', 22AWG
• Temperature Sensor Cable, 16.4', 24AWG
• Door Sensor Cable, 16.4', 24AWG
• Installation and Operation Manual
• 5-Year Limited Warranty

Sauna heater sold separately.

• Sleek black control display panel
• Settable on/off, time, temperature, and delay
• For heaters up to 18kW (over 11kW requires extension box)
• Settable temperature range of 122-230°F
• Delayed start up to 48-hours in advance
• Inside/outside sauna room installation (For outdoor installations, control must be placed in an enclosed weatherproof box)
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock

Technical Specifications

• Temperature Range: 104°F – 230°F
• Length: 4.1"
• Width: 2.2"
• Depth: 0.9"
• Supply Voltage: 40A, 240V 2~
• Heating Period Options: 3 hrs, 8 hrs, 12 hrs
