HUUM DROP 4.5STU Heater Package
HUUM DROP 4.5STU Heater Package
Couldn't load pickup availability
Share





- Description
- Features
- Specifications
- Technical

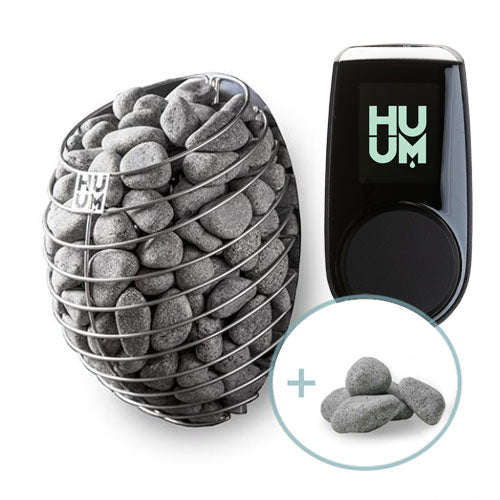

Complete Sauna Heating Package
The HUUM DROP 4.5STU Package includes everything you need to bring modern elegance and superior performance to your sauna. At its core is the award-winning HUUM DROP 4.5kW electric sauna heater, designed for rooms up to 247 cubic feet (CF). This package also includes your choice of control: the UKU Local digital controller or the UKU Wi-Fi controller, which allows you to preheat your sauna remotely from your smartphone.
Compact Design with Exceptional Capacity
Inspired by the purest element in nature—a drop of water—the DROP heater’s sculptural form softens the lines of a traditional sauna and creates a stunning focal point. Despite its compact, wall-mounted design, it accommodates up to 122 lbs of rounded olivine stones, providing long-lasting heat and superior steam—outperforming even many wood-burning stoves.
Award-Winning Craftsmanship
Recognized with Europe’s prestigious Red Dot Design Award, the HUUM DROP blends beauty and engineering excellence. The large stone capacity ensures consistent, soft, and radiant heat while allowing for generous water pouring to create luxurious, gentle steam with every session.
Smart Control Options
For added convenience, the UKU Wi-Fi controller (optional) lets you preheat and manage your sauna from anywhere, ensuring it’s ready exactly when you are.
Includes
Drop 4.5kW Sauna Heater
- 4.5kW sauna heater
- Wall-mount bracket
- Installation and operation manual
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Drop 4.5kW Sauna Heater
- Unique water drop design
- 240V/1PH operation
- For sauna rooms from 106 to 247 cu ft
- Works with UKU controls (sold separately)
- 122 pound stone capacity (required 4 boxes sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements

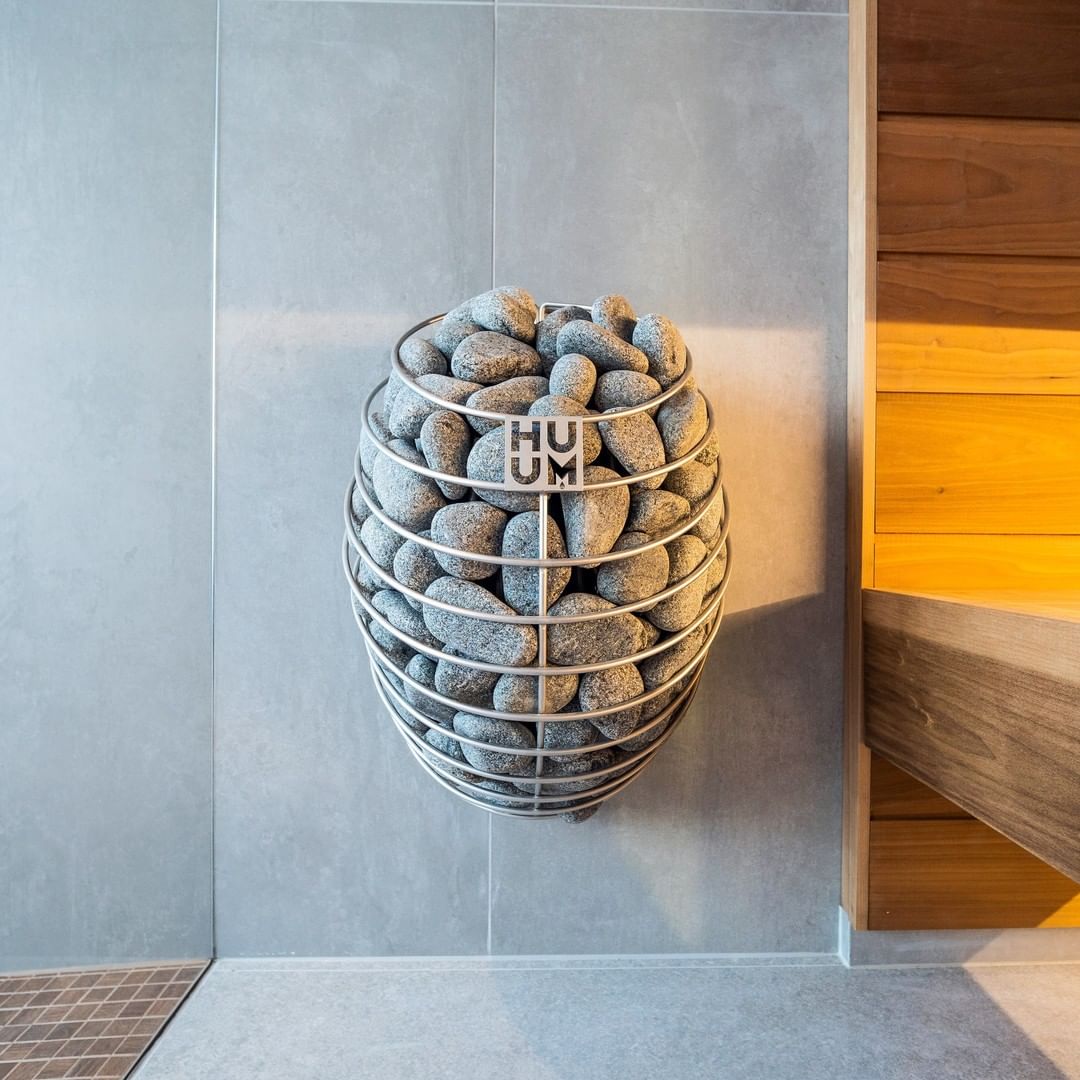

- Wall-mounted design
- Designed, engineered, and made in Estonia
- Dimensions: 15.4"W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel

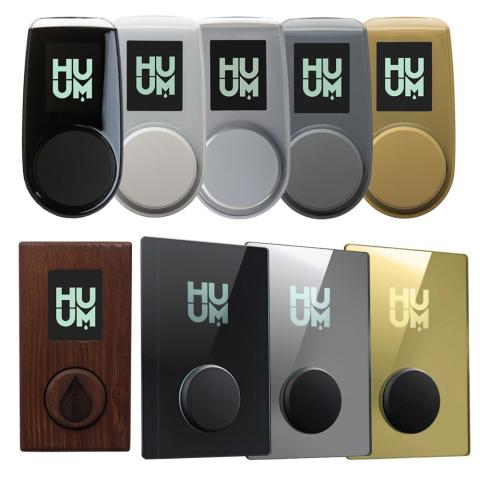

- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Heater Specifications
- Model: DROP 4.5STU Package
- Heater Model: DROP 4.5
- Kilowatt Rating: 4.5 kW
- Sauna Room Size: 106 – 247 cubic feet
- Heater Weight: 24 lbs
- Shipping Weight (with stones): 146 lbs
- Electrical Requirements: 240V, Single Phase
- Amperage Draw: 18.8 Amps
- Recommended Circuit Breaker: 30 Amps
- Wire Size: 10 AWG
- Width: 15.4" (390 mm)
- Depth: 13.2" (335 mm)
- Height: 23.3" (590 mm)
UKU Controller Specifications
- Minimum Temperature Setting: 104°F
- Maximum Temperature Setting: 230°F
- Shipping Weight: 20 lbs
Console Dimensions:
- Width: 2.2" (55 mm)
- Depth: 0.9" (22 mm)
- Height: 4.1" (105 mm)
Main Module Dimensions:
- Width: 3.5" (90 mm)
- Depth: 2.3" (58 mm)
- Height: 5.6" (142 mm)
Display Panel Cable:
- Length: 9.8 ft
- Wire Size: 22 AWG
Temperature Sensor Cable:
- Length: 16.4 ft
- Wire Size: 24 AWG
Door Sensor Cable:
- Length: 16.4 ft
- Wire Size: 24 AWG
DROP Installation and Operation Manual
UKU Installation and Operation Manual
UKU Installation Diagram
