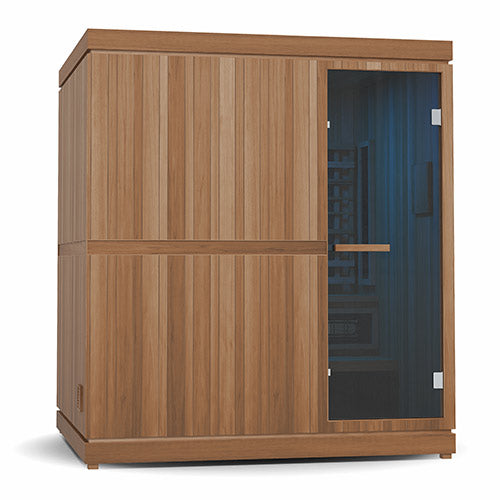

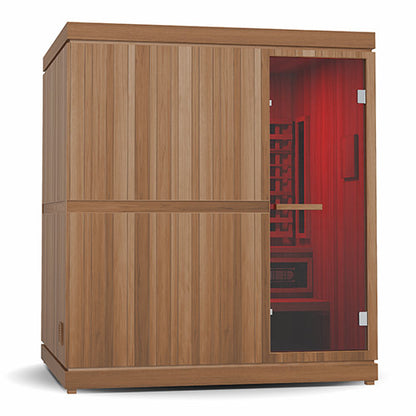

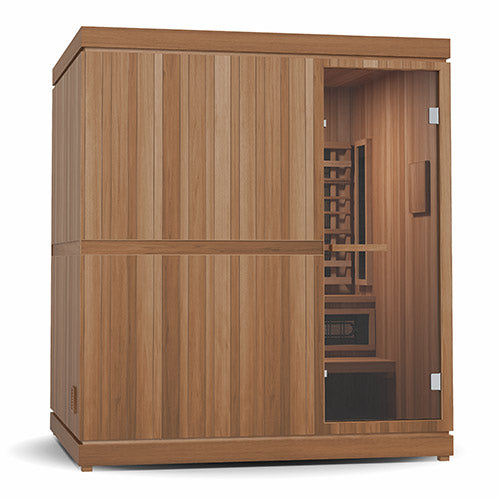

Finnmark FD-5 Trinity Combination Sauna
The Finnmark FD-5 Trinity is a one-of-a-kind multi-dimensional home wellness system, combining three powerful therapies in a single unit: UL-Listed Spectrum Plus™ infrared panels, a traditional rock sauna heater with vulcanite stones, and true medical-grade Spectrum Red Light™ Therapy. Designed for those who refuse to compromise, this sauna delivers the best of both modern infrared and authentic steam traditions.

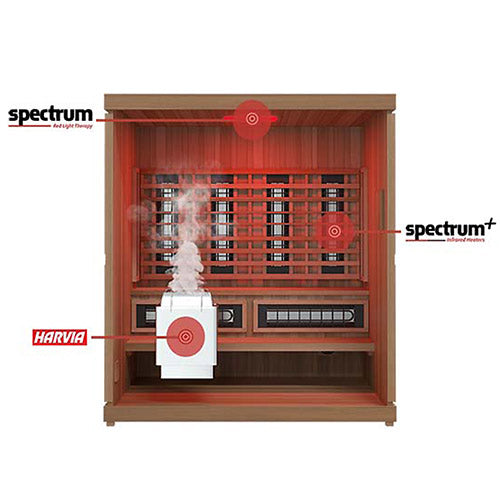

Triple Therapy Experience
-
Advanced Infrared Heating – Featuring the only UL-Listed short-wave infrared panels in the industry, delivering heat that penetrates muscles and joints up to 25x more effectively than standard carbon heaters. Experience a faster, deeper sweat and superior therapeutic results.
-

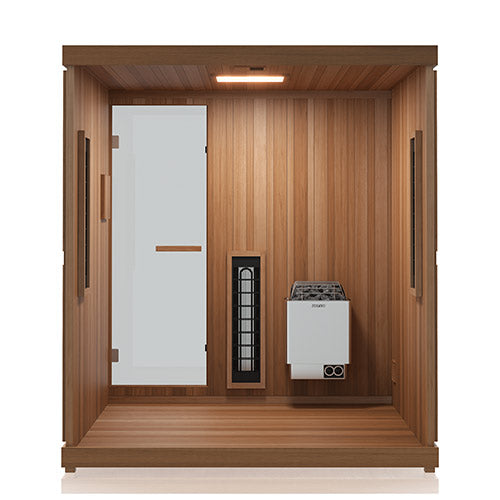

Traditional Sauna Heater – A 240V/1PH 4.5kW rock heater with vulcanite stones allows you to splash water on the rocks for invigorating steam, radiating even heat throughout the cabin. Enjoy the authentic ritual and intensity only a true steam sauna provides.
-

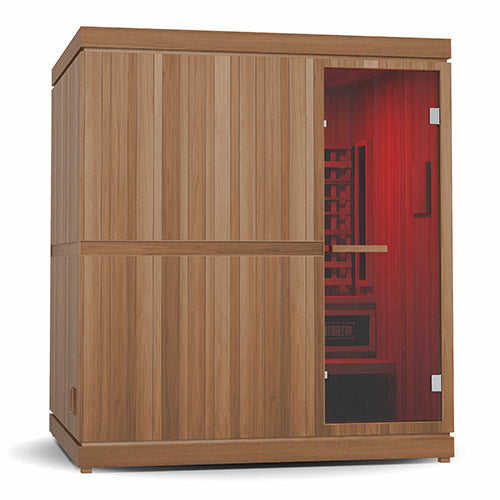

Spectrum Red Light™ Therapy – Low-level light wavelengths stimulate collagen production, support cellular repair, and enhance circulation. This medical-grade technology perfectly complements both infrared and steam sessions, making every sauna experience more restorative.
Premium Craftsmanship
-
Antimicrobial Western Canadian Cedar Interior – Naturally resists mold, bacteria, and odors, ensuring a fresh and healthy sauna environment.
-
Thermal Plus™ Aspen Exterior – Organically treated with heat and steam for exceptional durability—resistant to warping, rotting, or decay.
-
Spacious Multi-Person Design – Built to comfortably accommodate group sessions or provide extra space to stretch and relax.
Why Choose the FD-5 Trinity?
Finnmark Designs is the only manufacturer to bring together UL-certified infrared heating, authentic steam with stone tradition, and medical-grade red light therapy in one seamless unit. The FD-5 Trinity delivers unmatched versatility, durability, and performance—making it the ultimate luxury sauna for complete mind and body renewal.
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series B 4.5kW Sauna Heater
- 1 Box of the Harvia AC3000 0-10cm Sauna Stones (44 lbs)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Spectrum LED Near Infrared Ceiling Lights Combined with Medical-Grade Spectrum Red Light Therapy
- Controller 2.0, Built-In LCD Wi-Fi Touchscreen Control Panel with Bluetooth Audio
- ETL Certification
- Limited Warranty

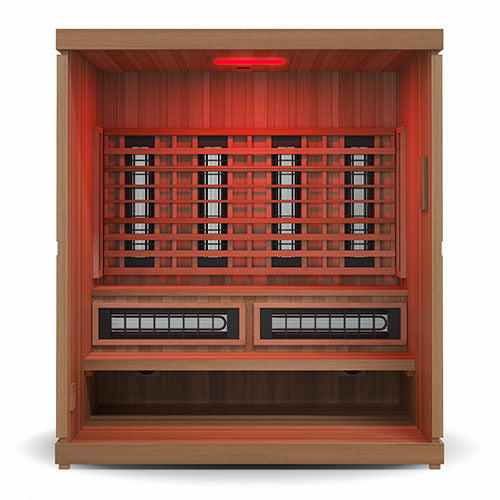

- Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.
- Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
- Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
- Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
- 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
- Built-in LCD Wi-Fi touchscreen controller with bluetooth audio.
- Audio with 6" Hi-Fi speakers, 8mm tempered glass for the ultimate thermal retention.

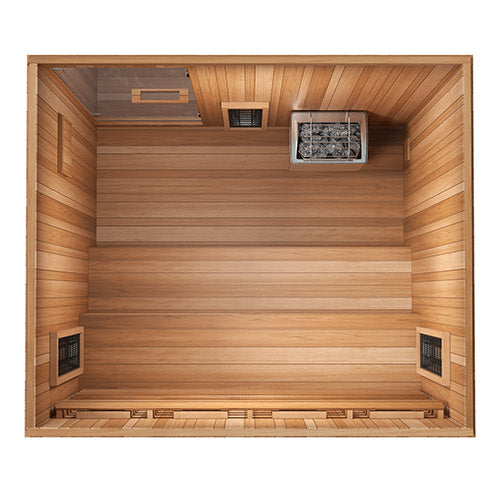

- Extra large two-tier bench system.
- Low EMF sauna tested by a NASA award winning testing facility.
- High Emissivity infrared heaters.

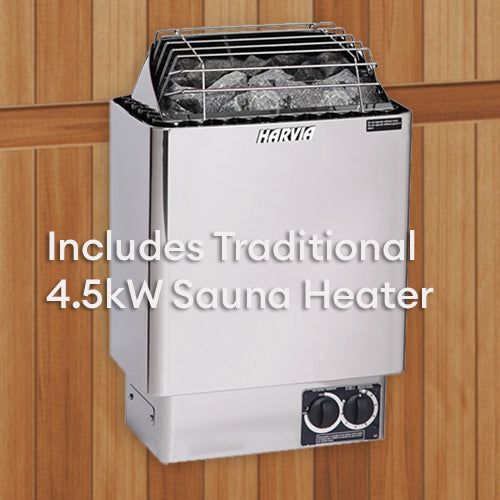

Harvia KIP Series B 4.5KW Sauna Heater
- Wall-mounted
- Stainless steel construction
- 4.5kW
- For sauna rooms from 100 to 210 cu. ft.
- Requires a minimum of 50 lbs of stones (1 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Built-In controls
- Available in 240V/1PH operation or 208V/3Ph operation
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- UL listed
- Direct rock-to-heating element contact
- Designed, engineered, and made in Finland
- Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
- 2-Year Warranty (Consumer Use)
- Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Benefits of Infrared
- The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
- The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna. As a result, you're able to work up the best possible sweat in the least amount of time.
- Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
- Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
- Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
- Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.
Finnmark FD-5 Trinity Combination Sauna
- Model: FD-5
- External Materials: Thermo-Aspen
- Interior Materials: Western Canadian Cedar
- Volts: 240
- IR Watts: 2700
- Amperage: 15 | TBD
- Plug Type: NEMA 6-15
- Maximum Temperature: IR 170°F | Traditional 190°F
- Interior Dimensions: 71"W x 57.5"D x 75.5"H
- Exterior Dimensions: 75"W x 64"D x 83"H
- Room Volume: 130 cu. ft.
- Door Dimensions: 23.625"W x 68.875"H
- Door Handle Dimensions: 1.5"W x 13.25"H
- Glass Thickness: 8mm w/ Gasket
- Product Weight: 575 lbs
- Shipping Dimensions: 80"W x 40"D x 83"H
- Shipping Weight: 840 lbs
Included Traditional Sauna Heater (KIP45B)
- Model: KIP45B
- Kilowatt Rating: 4.5 kW
- Primary Fuel: Electric
- Minimum Adjusted Cubic Feet: 100
- Maximum Adjusted Cubic Feet: 210
- Voltage: 240V
- Phase: 1PH
- Amperage: 18.8 Amps
- Heater Weight: 40 lbs
- Shipping Weight with Sauna Stones: 84 lbs
- Width: 16" (406mm)
- Depth: 11" (279mm)
- Height: 24" (609mm)
About This Delivery: This exceptional indoor Infrared Sanctuary requires delivery by a special appointment, and on a wooden pallet. The driver is responsible for “curbside delivery only” and will lower the items to ground level. Prior to shipping this product, we often contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Dimensions: 80"W x 40"D x 83"H
Weight: 840 lbs
